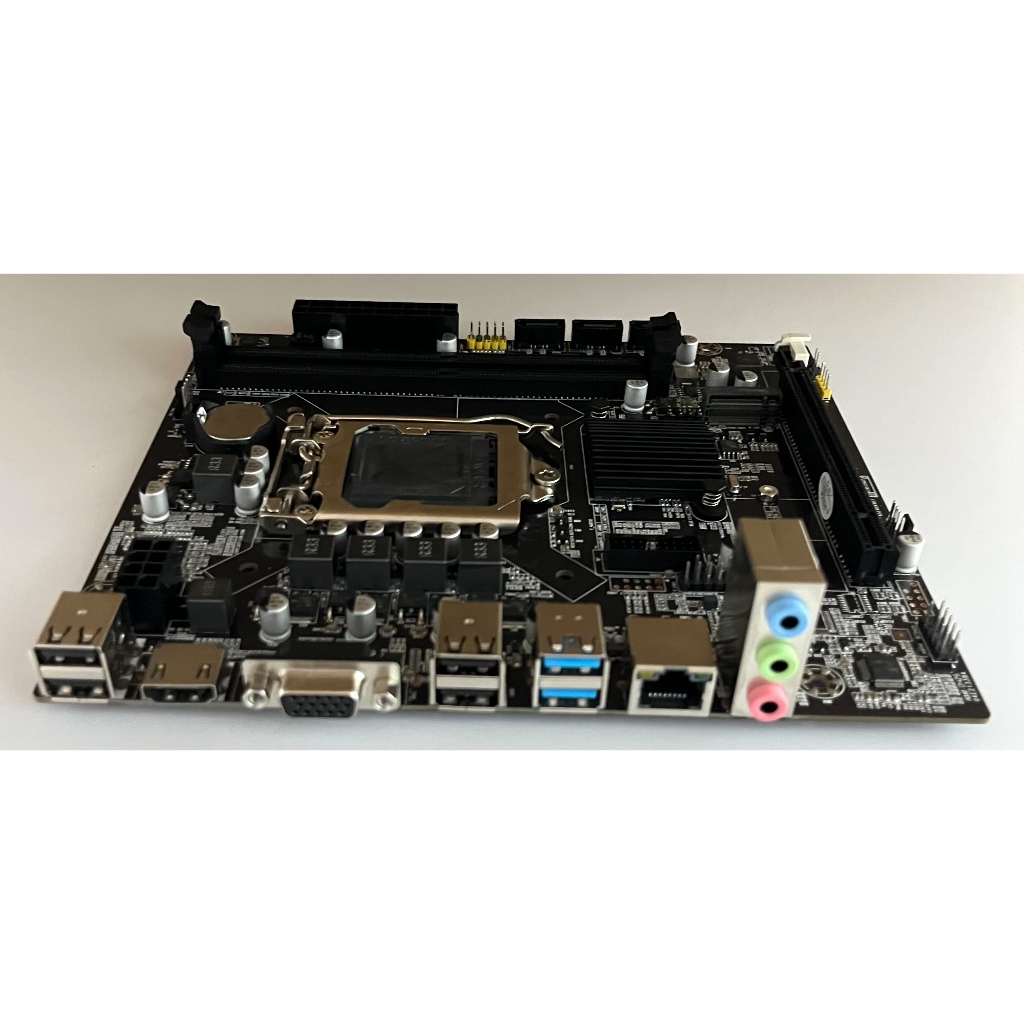

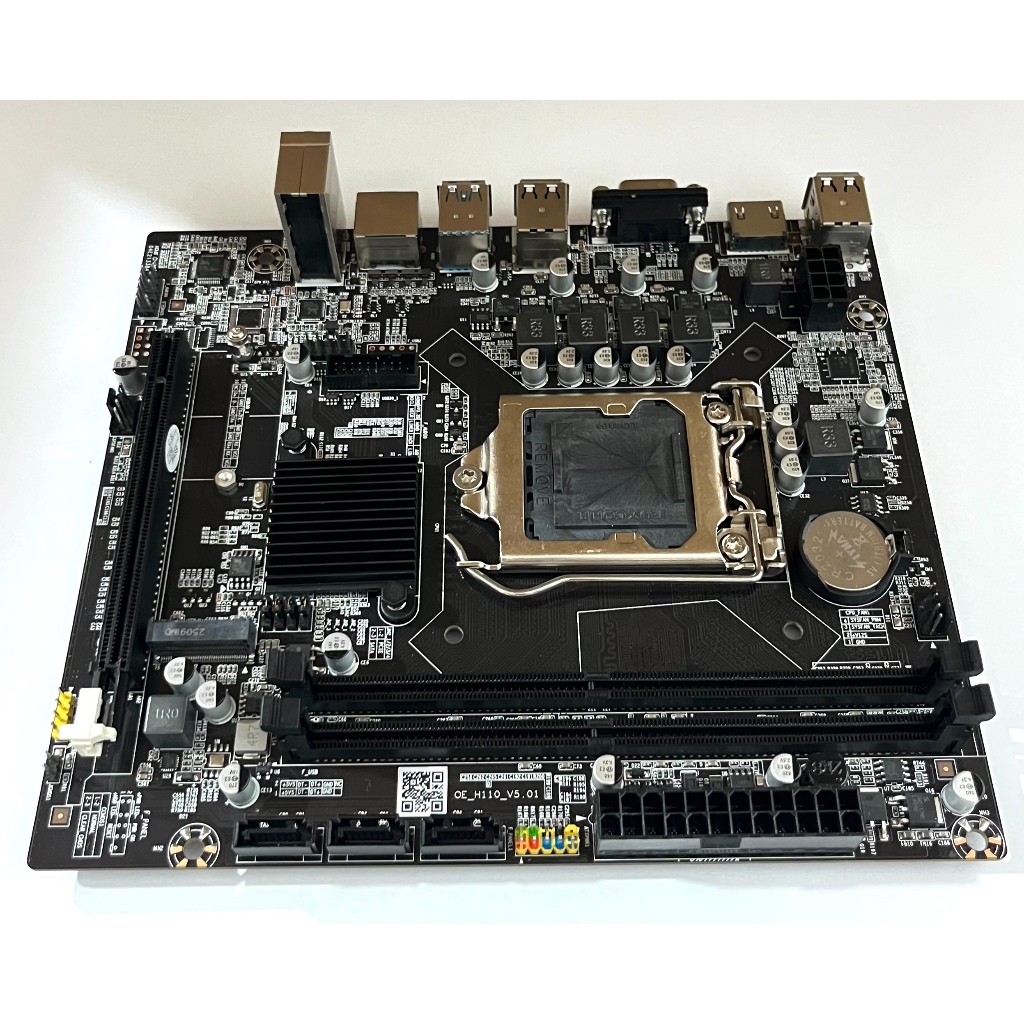

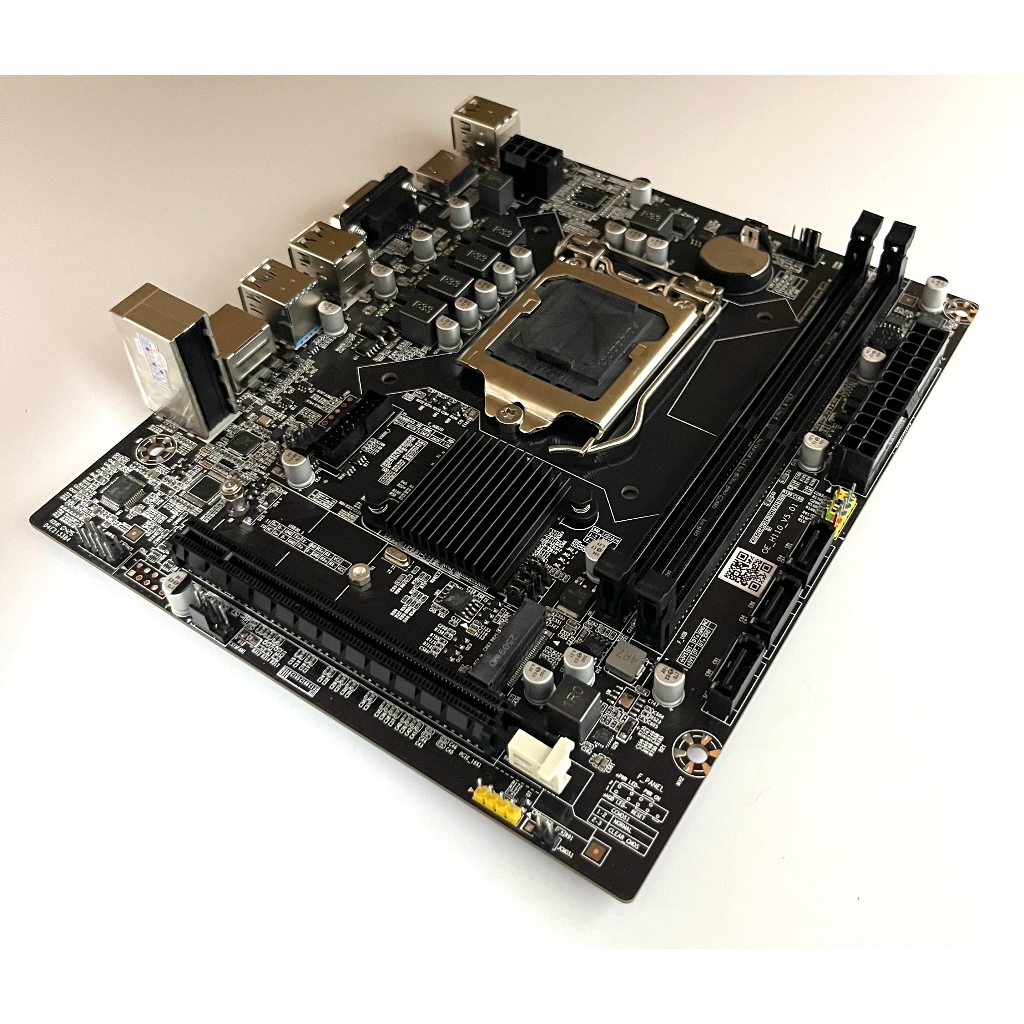

MAINBOARD 1151 (H110) เมนบอร์ด LWC (LONGWELL)

Brand: LWC

Model: H110

CPU Support:

Support for Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® processors in the LGA1151 package Gen 6, 7

Socket: 1151

Chipset: Intel B150 (H170, C236, Q150)

Memory Support:

2 x DDR4 DIMM sockets supporting up to 32GB of system memory

Dual channel memory architecture

Support for DDR4 2400 / 2133 MHz memory modules

Audio:

Audio Realtek® ALC662 codec

High Definition Audio

2 / 4 / 5.1-channel

Expansion Slots: 1 x PCI Express x16 3.0 slot

Storage:

3 x SATA 6Gb/s connectors

1 x M.2 PCIe M.2 and M.2 SATA3 6.0 Gb/s (There are switch to enable/disable between PCIe and SATA)

Supports M.2 Type 2242 / 2260 / 2280 SSD module

Internal I/O Connectors:

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

3 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x USB 3.0/2.0 header

1 x USB 2.0/1.1 headers

1 x Clear CMOS jumper

Back Panel Connectors:

1 x ...
