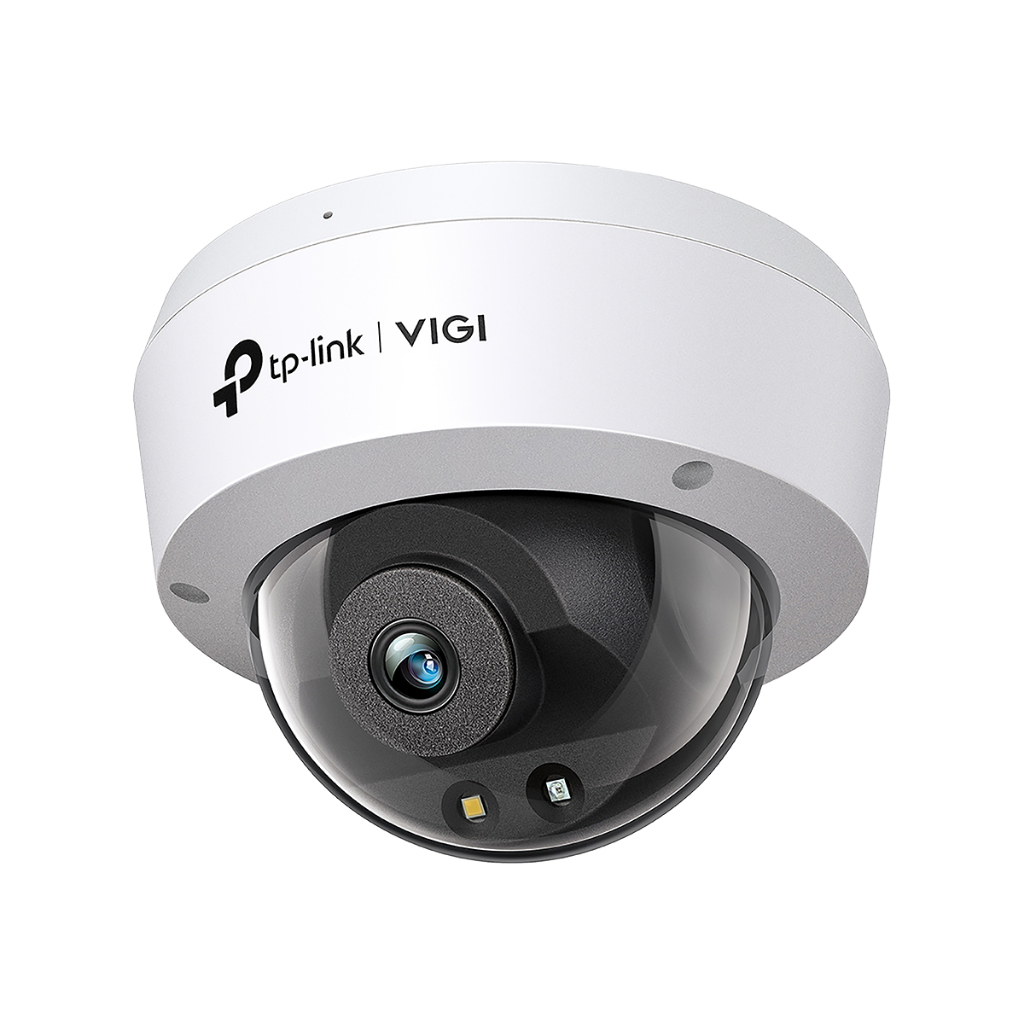

TP-Link VIGI C240 (VIGI C240) 4MP Full-Color Dome Network Camera

CAMERA

Image Sensor

• 1/3” Progressive Scan CMOS

Shutter Speed

• 1/3 to 1/10000 s

Slow Shutter

• Yes

Aperture

• 2.8 mm: F1.6

• 4 mm: F1.6

Lens

• 2.8 mm/ 4 mm

Lens Mount

• M12

Minimum Illumination

• Color: 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism

• IR Cut Filter

Day/Night Switch

• Unified/ Scheduled/ Auto

Digital Noise Reduction

• 3D DNR

WDR

• DWDR

Weatherproof Rating

• IP67

Pan/Tilt Range

• Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°

Viewing Angle

• 2.8mm:

Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°

• 4mm:

Horizontal FOV: 79.7°, Vertical FOV:42.9°, Diagonal FOV: 93.9°

LENS

Type

• Fixed Focal Lens

Focal Length

• 2.8 mm/4 mm

Aperture

• 2.8 mm: F1.6

• 4 mm: F1.6

FOV

• 2.8 mm:

Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°

• 4 mm:

Horizontal FOV: 79.7°, Vertical FOV: 42.9°, Diagonal FOV: 93.9°

Lens Mount

• M12

DORI Distance

• 2.8 mm:

Detect: 64 m (209 ft)

Observe: 27 m (87 ft)

Recognize: 13 m (42 ft)

Ident...
