U7-Pro-Max Ubiquiti Unifi รุ่นใหม่สินค้าแท้100%
รายละเอียดสินค้า
U7-Pro-Max
ข้อมูลอุปกรณ์
DataSheet U7-Pro-Max
Installation Guide
Mechanical

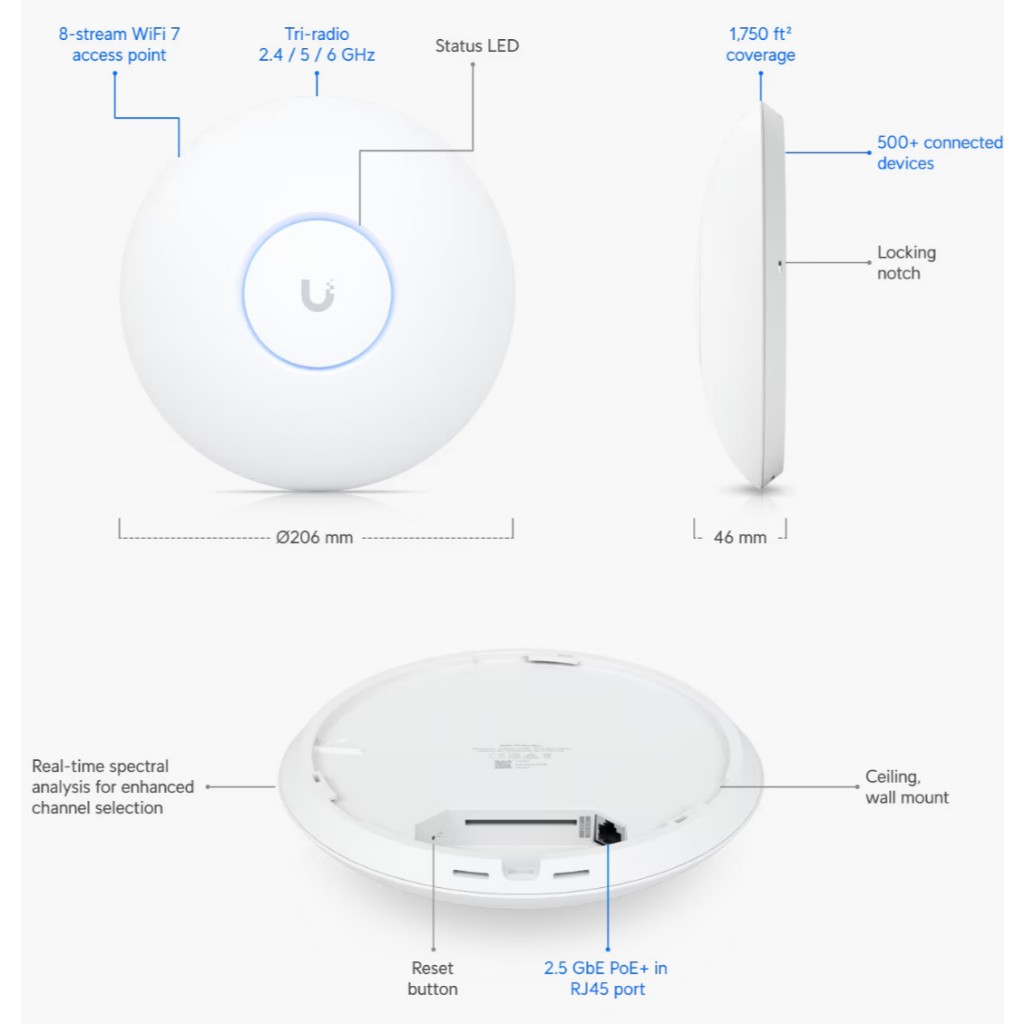

Dimensions Ø206 x 46 mm (Ø8.1 x 1.8")
Weight 680 g (1.5 lb)
Enclosure material Polycarbonate, aluminum
Mount material Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet
Power method PoE+
Power supply UniFi PoE switch
Supported voltage range 44—57V DC
Max. power consumption 25W
Max. TX power
2.4 GHz
5 GHz
6 GHz
23 dBm
29 dBm
23 dBm
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz
5 GHz
6 GHz
688 Mbps (BW40)
8.6 Gbps (BW240)
5.7 Gbps (BW320)
Antenna gain
2.4 GHz
5 GHz
6 GHz
4 dBi
6 dBi
5.9 dBi
LEDs White/blue
Button Factory reset

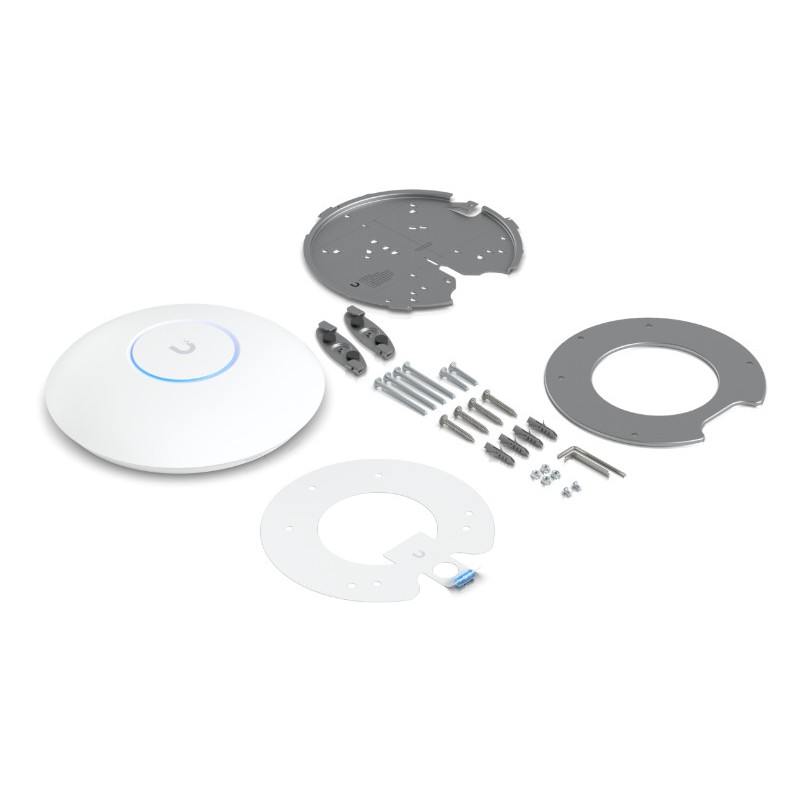

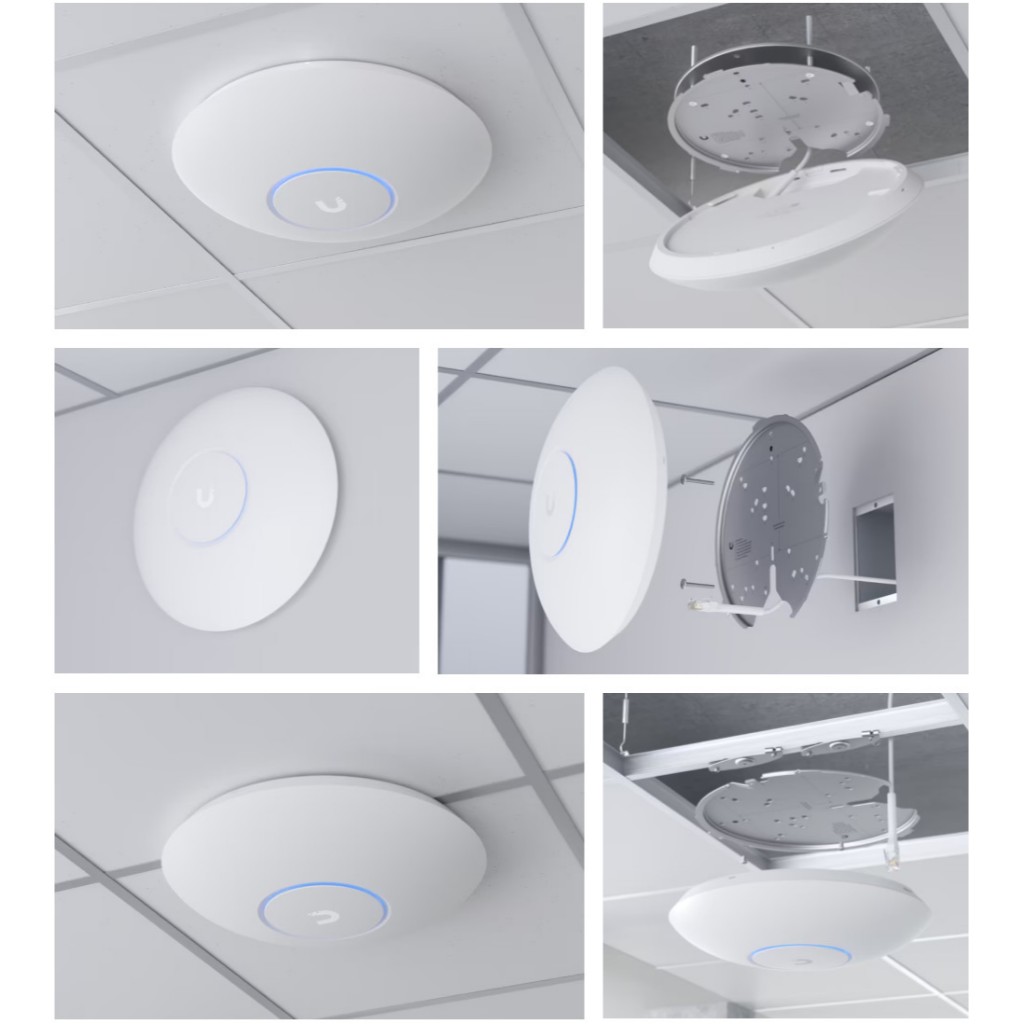

Mounting Wall, ceiling (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi...
