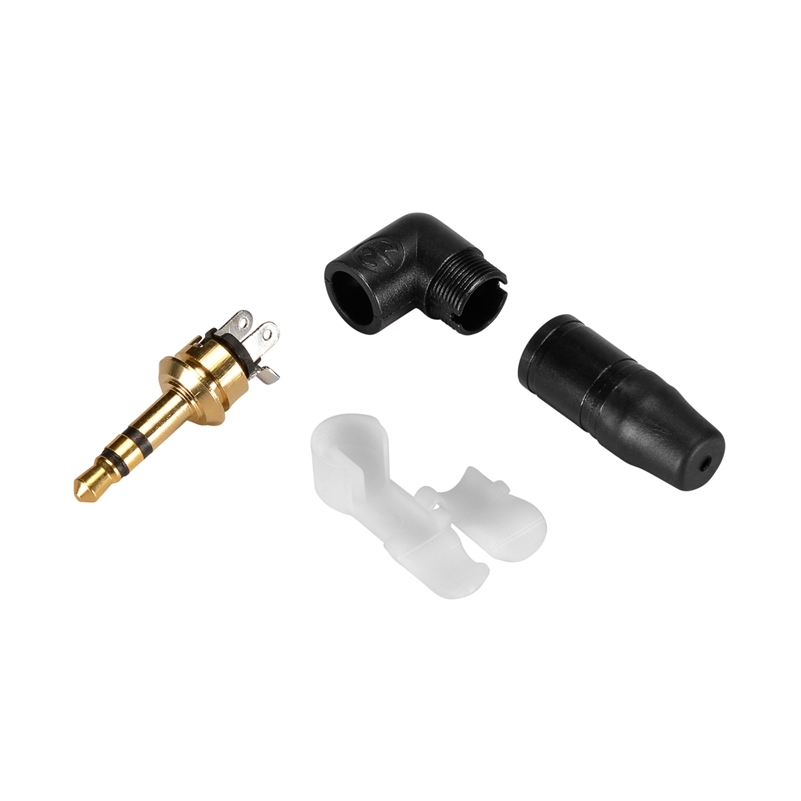

แจ็ค 3.5 mm AUX Neutrik NTP3RC-B

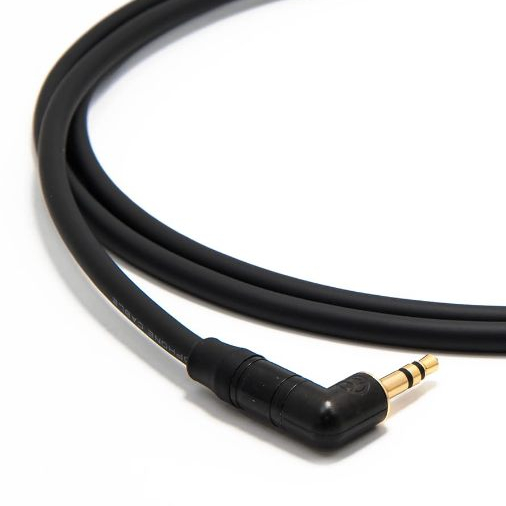

Neutrik NTP3RC-B ใช้กับสาย

Mogami 2893

Technical Information

Product

Title NTP3RC

Connection Type Plug

Gender male

Electrical

Contact resistance depends on mating connector mΩ

Dielectric strength 1 kVdc

Insulation resistance > 2 GΩ (initial)

Rated voltage <50 V

Mechanical

Cable O.D. 2 - 4.5 mm

Wiresize 0,22 mm²

Wiresize 24 AWG

Wiring Solder contacts

Material

Bushing Brass (CuZn39Pb3) + PU, Ni

Contact plating 2 µm Ni (Su)

Contacts Brass (CuZn39Pb3)

Insert Polyamide (PA 6.6 15 % GR)

Shell Zinc diecast (ZnAl4Cu1)

Shell plating Nickel

Strain relief Polyacetal (POM)

Environmental

Solderability Complies with IEC 68-2-20

Temperature range -20 °C to +65 °C
