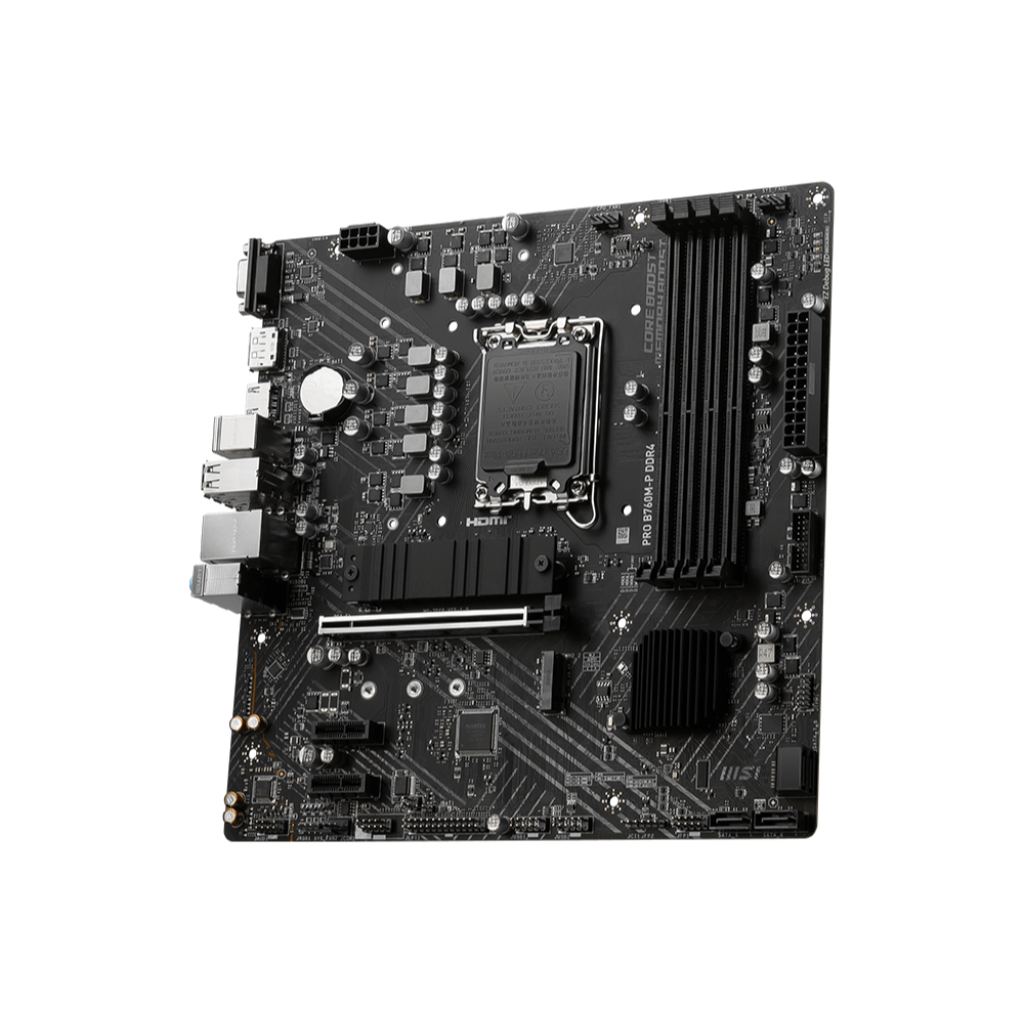

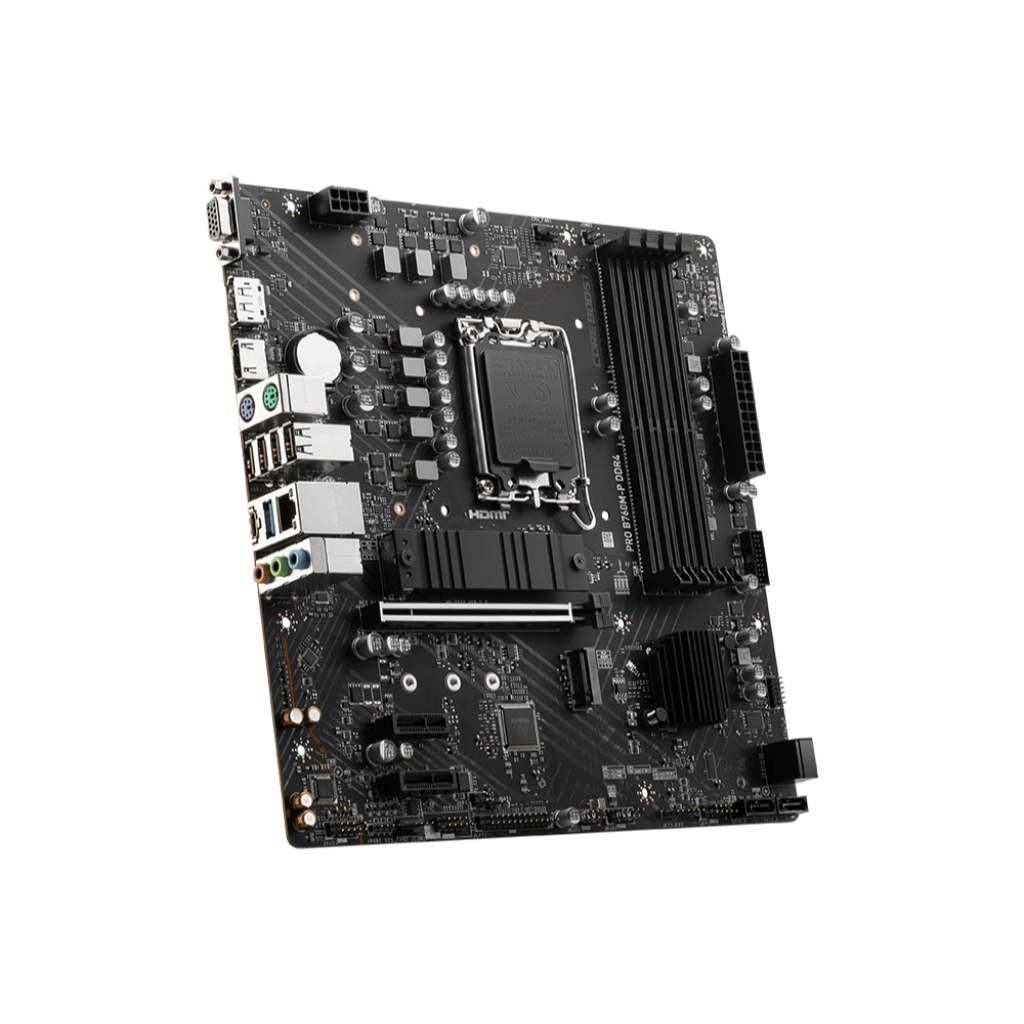

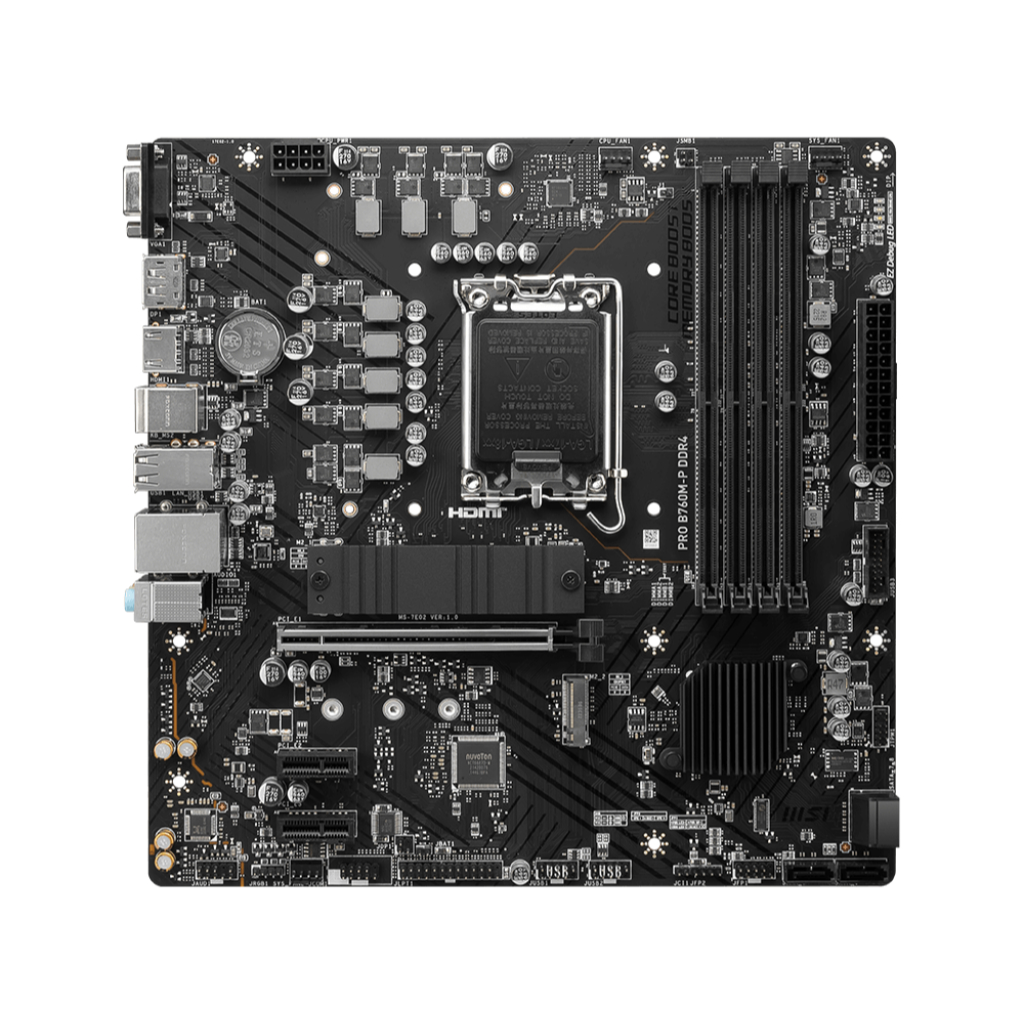

MAINBOARD MSI PRO B760M-P DDR4 LGA-1700 (รับประกัน3ปี)

คุณสมบัติสินค้า

CPU Socket Type Intel LGA-1700

CPU Type 13th & 12th Gen Intel Core Processors

Supported CPU Technologies Raptor Lake

Chipset Intel B760

Number of Memory Slots 4x DIMM

Memory Standard DDR4 Support up to 4800(OC) MHz

Maximum Memory Supported 128 GB

Expansion Slot 1x PCIe x16 slot, 2x PCIe x1 slot

Storage Devices 2x M.2 PCIe 4.0 x4 slot, 4x SATA III port

Onboard Video Chipset Integrated Graphic on Processors

Onboard Audio Chipset Realtek ALC897 Codec

Audio Channels 7.1 Channel HD Audio

Onboard LAN Chipset Realtek RTL8111H Gigabit LAN

Onboard LAN Speed 10/100/1000 Mbps

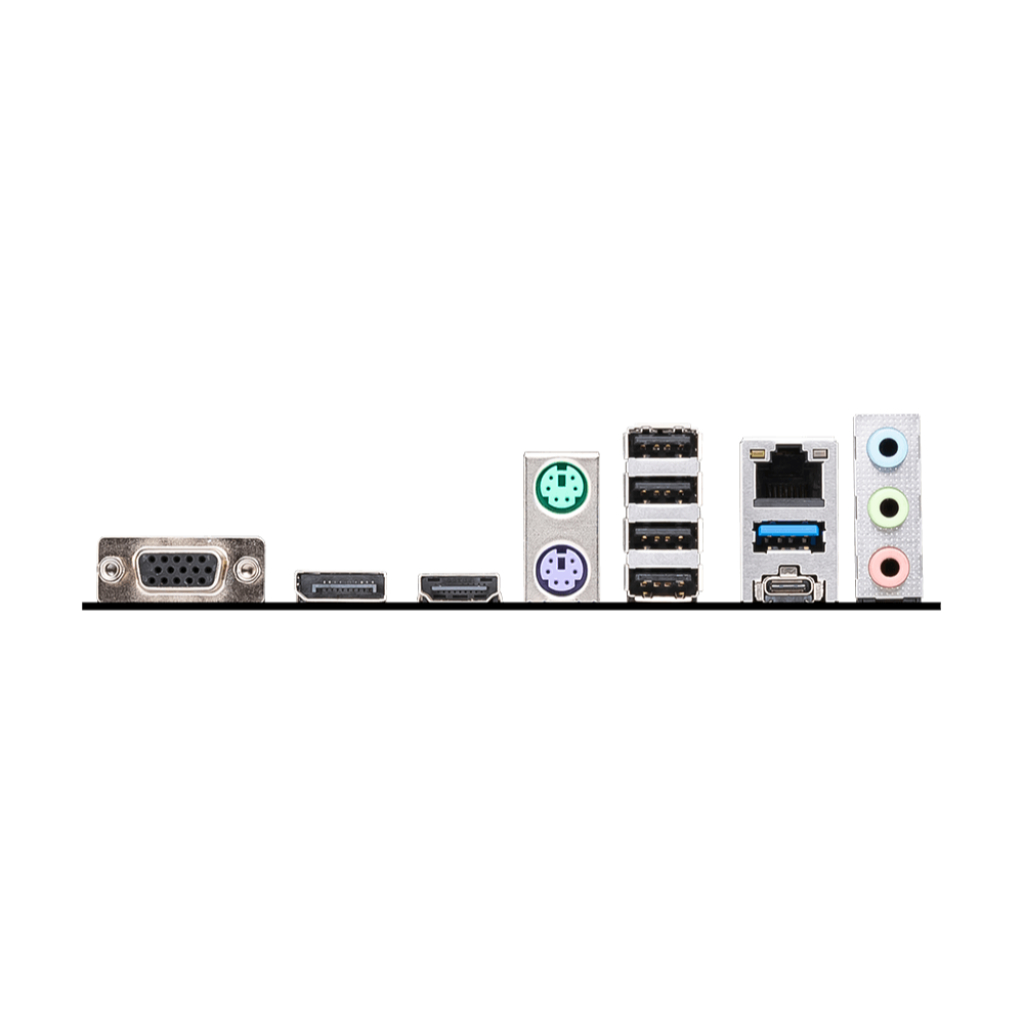

Real Panel Ports 2x PS/2, 1x VGA, 1x HDMI, 1x DisplayPort, 1x USBC 3.2, 1Gb LAN, Audio connector

Onboard USB 2x USB3.2 port, 4x USB2.0 port

Dimensions W x D x H 24.4 x 24.4 cm

Case spec Micro-ATX Form Factor

Power Pin 1x 24-pin Main Connector, 1x 8-pin Power Connector

Warranty 3 Year
